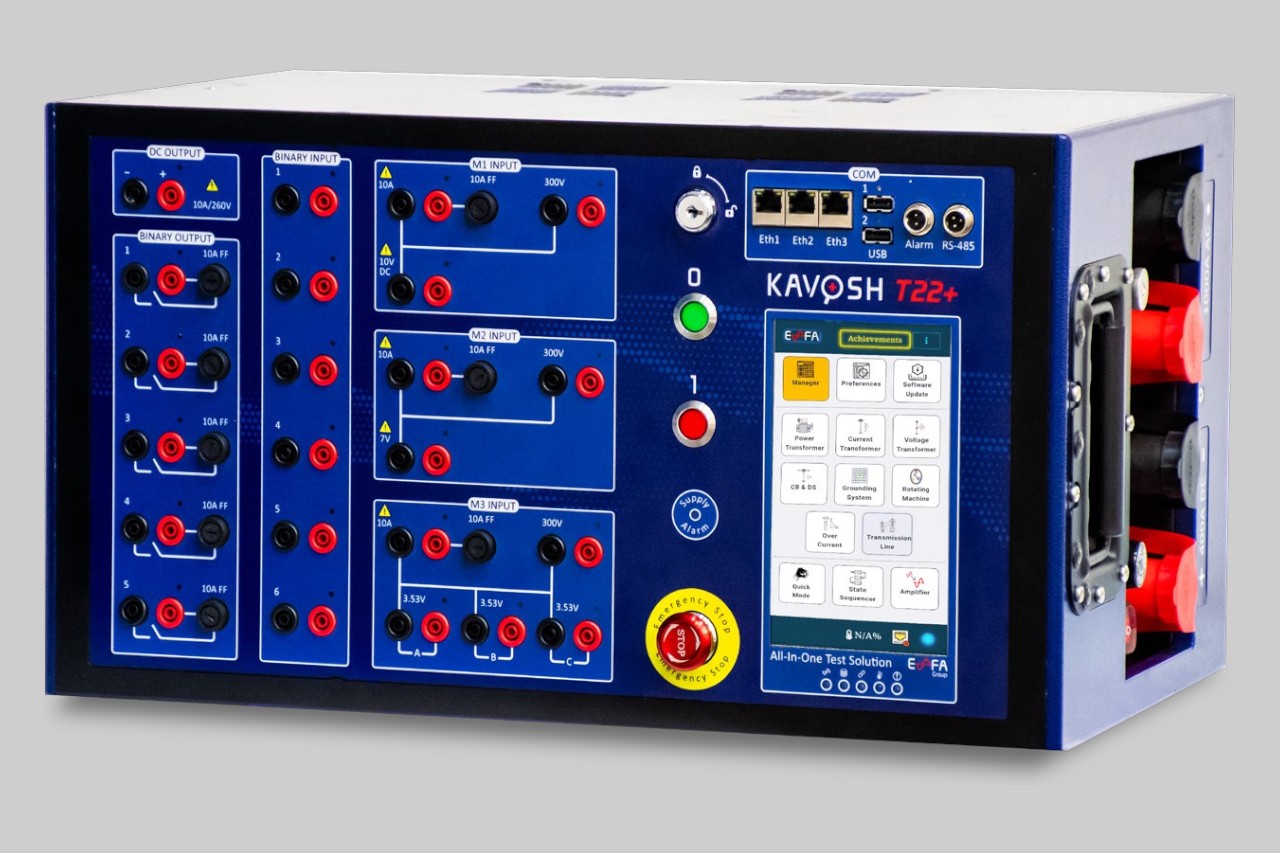

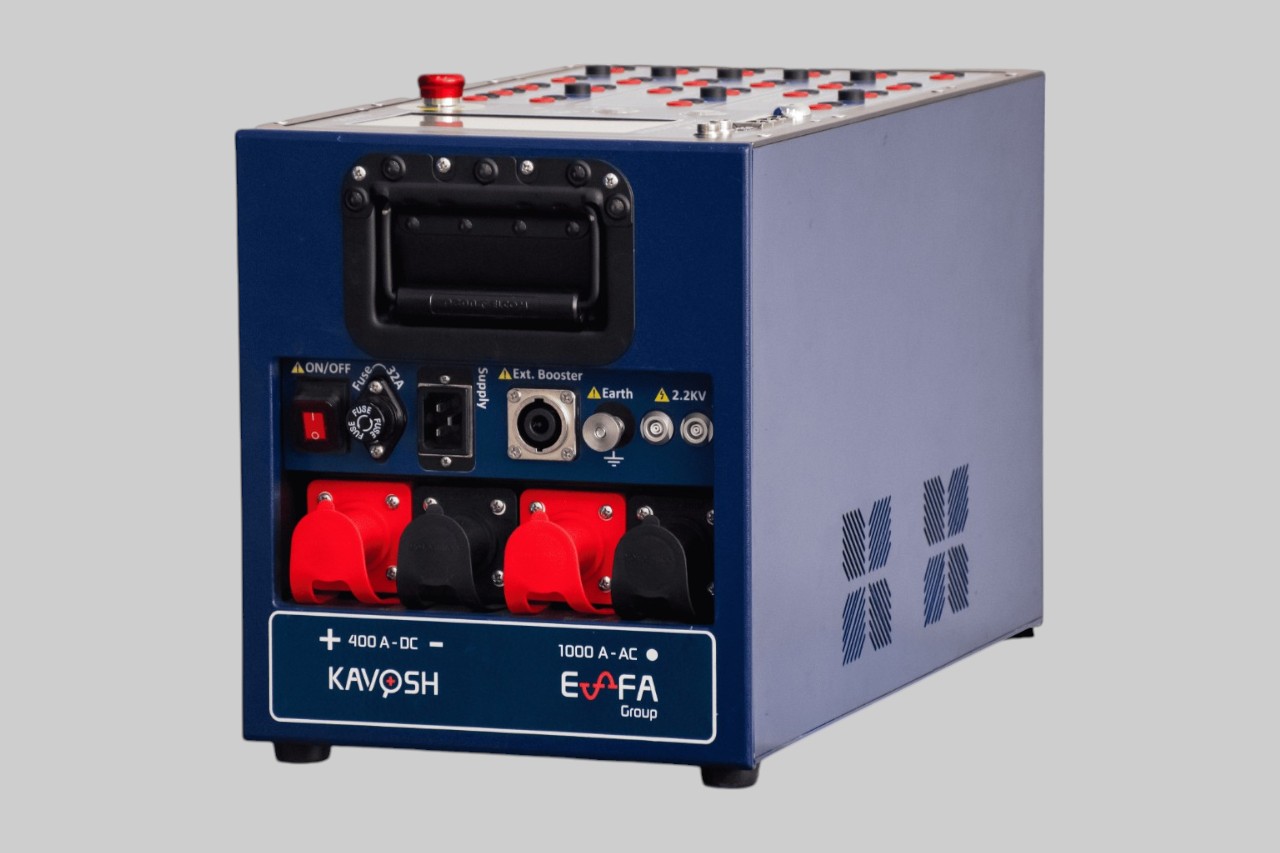

ESFA Kavosh T22+

The ESFA Kavosh T22+ is a versatile, controllable single-phase current and voltage source.
It offers a rated output power of 5 kVA.
Ideal for commissioning, periodic, and diagnostic testing across various electrical equipment.
Equipped with a user-friendly touchable LCD and built-in server for seamless operation without the need for external computers.

Adjustable Output Ranges:
- AC Voltage: 0 to 2200 V
- DC Voltage: 0 to 260 V
- AC Current: 0 to 1000 A
- DC Current: 0 to 400 A
Frequency Control: AC outputs with frequencies adjustable between 20 Hz and 120 Hz.
Synchronization Capability: Ability to sync with external current or voltage sources, allowing for generation of outputs with matching frequency and customizable phase differences and amplitudes.
Flexible Control Interfaces:

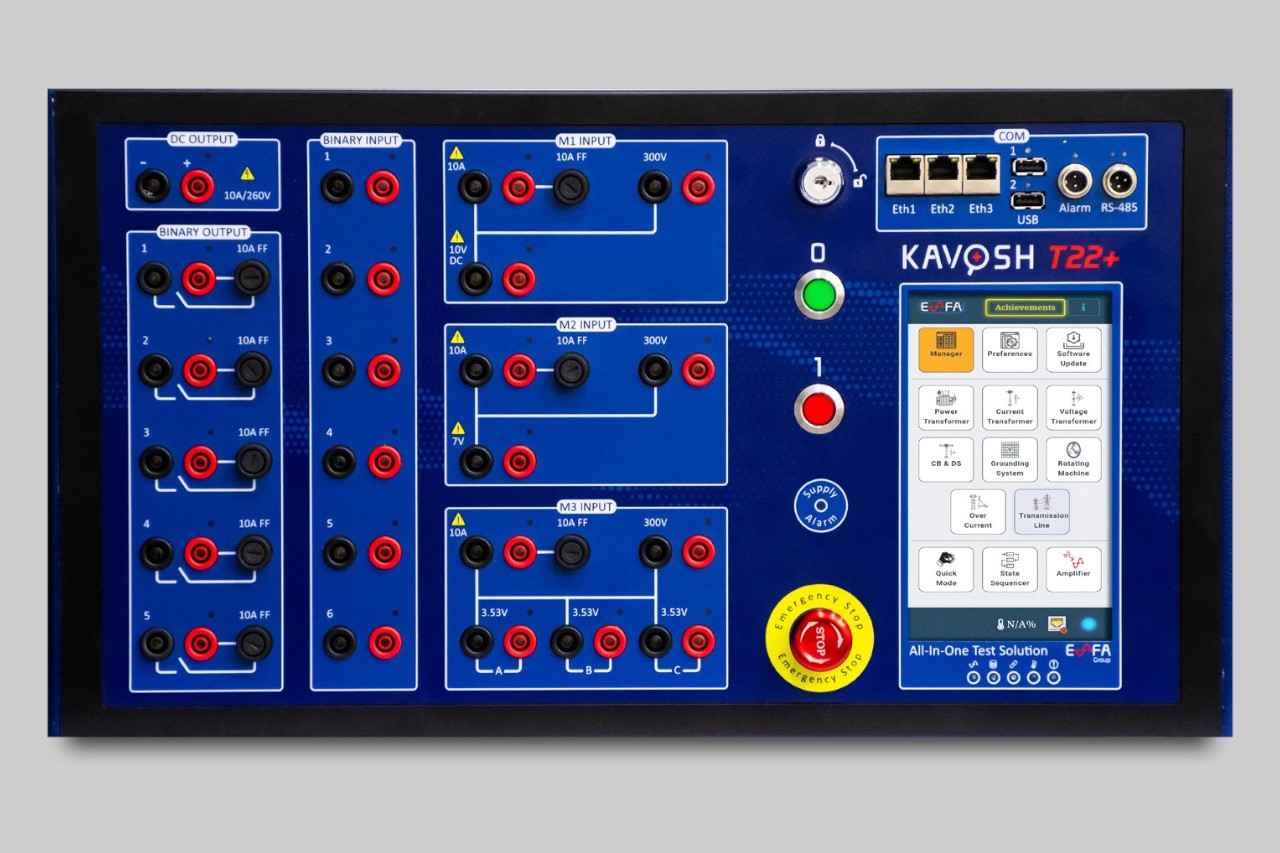

- Built-in touchable LCD for direct operation.
- Integrated server enabling connections via Wi-Fi or direct network cable to devices with internet browsers.
Comprehensive Testing Modules:
- Three-phase transformer testing.
- Positive and zero-sequence line impedance measurement.
- Dissipation factor (tan δ) measurement.
- Motor current signature analysis.
Robust Software Integration: Generates detailed reports and maintains a database of test results, with optional server connectivity for advanced analysis based on standard guidelines and historical data.

High Voltage Substations: Conduct comprehensive testing and diagnostics to ensure operational integrity.
Distribution Substations: Perform routine maintenance tests to guarantee reliable power distribution.
Power Plants: Assess and verify the performance of critical electrical components.
Research Centers and Universities: Utilize for educational purposes and advanced research in electrical engineering.
Industrial Plants (e.g., Petrochemicals and Refineries): Monitor and maintain electrical systems to prevent downtime and enhance safety.
